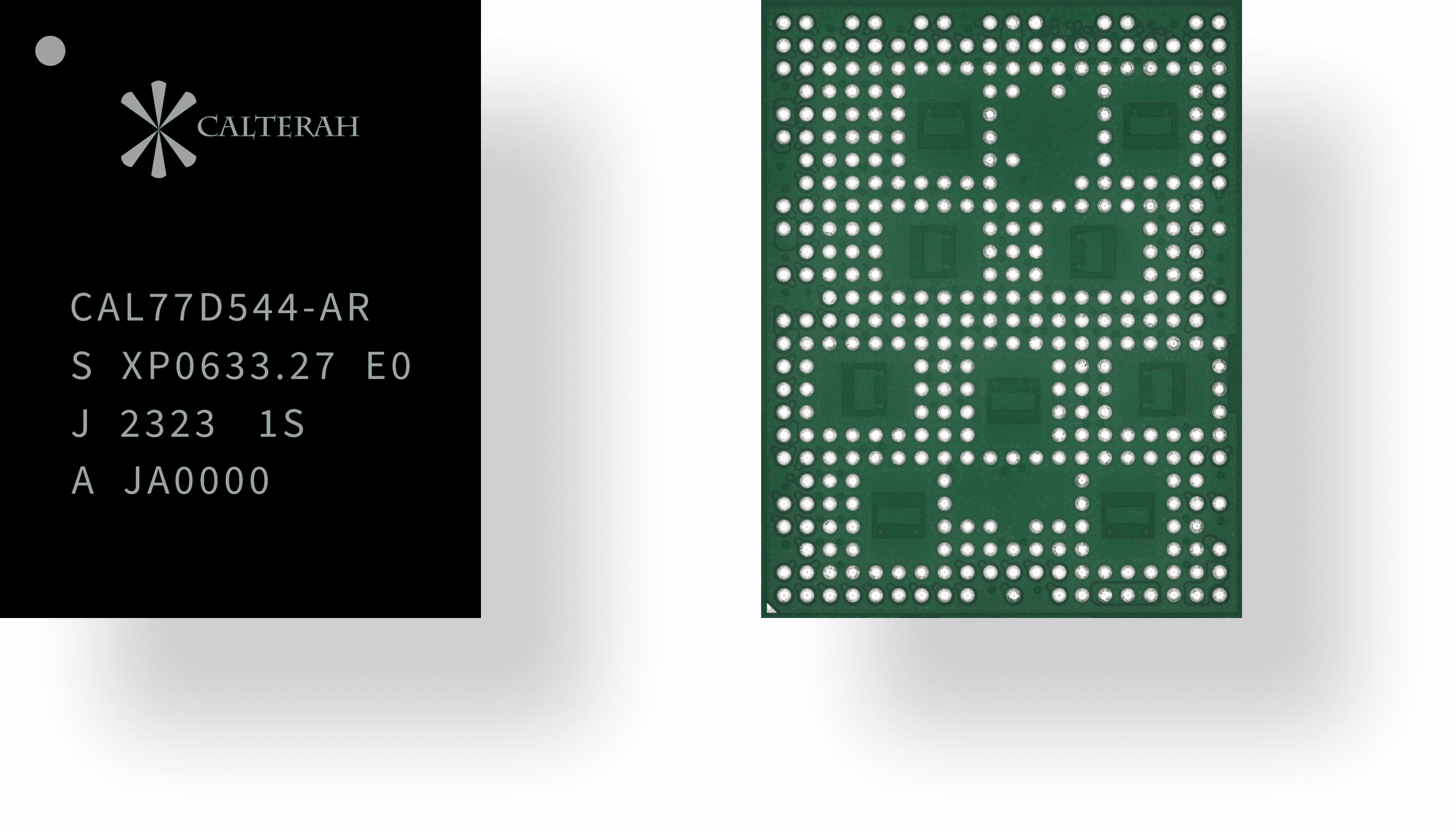

CALTERAH | CAL77D544-AR

Category:

Automotive-grade, fully-integrated mmWave radar RoP^® (Radiator on Package) SoC

Antennas:

Supporting waveguide antennas

Transmitter:

Five-channel transmitter

Receiver:

Four-channel receiver

Operating Frequency:

76 GHz to 81 GHz; supporting up to 5 GHz sweep bandwidth

FMCW Waveform Generator:

Highly flexible chirp configuration

Radar Signal Processor (RSP):

Powerful computing capability with high data throughput and flexible configuration; Sequencer for controlling parallel signal processing flows; DMA for data transfers with on-the-fly compression and decompression; two combos of radar signal processing engines

CPU:

A performance single-core processor with a spare Nuclei^® NA900 core for post-processing; a functional dual-core processor, consisting of 2 Nuclei^® NA900 cores with lockstep support

Memory:

4 MiB

Cybersecurity:

Supporting AES/RSA/ECC/SHA/TRNG cryptographic engines

Peripheral Interfaces:

Ethernet, CAN/CAN-FD, UART, SPI, OSPI, I²C, GPIO, PWM, WWDT

AEC-Q100:

Grade 1

Operating Junction Temperature Range:

-40 °C to 140 °C

Functional Safety:

ISO 26262 ASIL-B
